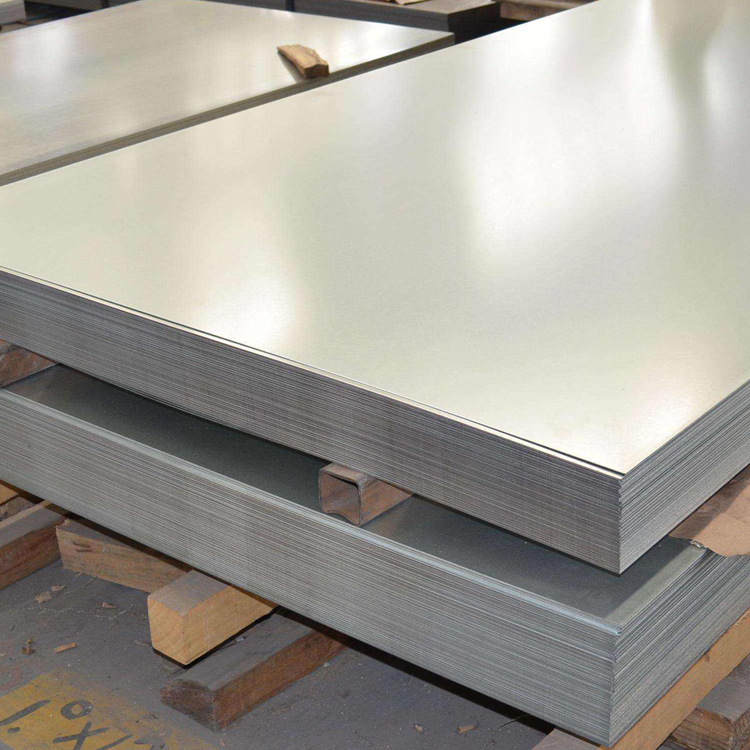

What to Look for When Buying Carbon Steel Plate?

Understanding Carbon Steel Plate Composition and Grades

Low, Medium, and High Carbon Steel: Key Differences

Carbon steel plates are categorized by carbon content, which directly governs their mechanical behavior and suitability for specific applications:

• Low-carbon steel (0.04%–0.30% carbon) delivers high ductility and excellent weldability–making it the preferred choice for structural frames, pipelines, and welded assemblies.
• Medium-carbon steel (0.31%–0.60% carbon) strikes a practical balance of strength, formability, and moderate weldability; commonly used in axles, gears, and rail components.
• High-carbon steel (0.61%–1.50% carbon) achieves maximum hardness and wear resistance but sacrifices ductility and weldability–reserved for blades, springs, and high-stress wear parts.

Chemical Composition of Carbon Steel Grades and Its Impact

Beyond carbon, controlled trace elements define performance boundaries:

• Manganese (Mn) (0.30–1.65%) improves strength, hardenability, and sulfur tolerance–critical for mitigating hot shortness during hot rolling and welding.
• Phosphorus (P) enhances machinability but degrades low-temperature toughness above 0.04%, particularly in thick sections.
• Sulfur (S) improves chip-breaking in machining yet reduces transverse ductility and weld integrity above 0.05%.

These elements interact predictably: manganese binds with sulfur to form harmless MnS inclusions, while phosphorus segregation at grain boundaries can trigger brittle fracture. Precise compositional control–verified via Mill Test Reports–is essential for pressure vessels, cryogenic service, and fatigue-critical structures.

How Carbon Content Affects Material Performance

Carbon is the primary alloying element governing the strength–ductility–weldability triad:

• Strength and hardness rise ~150 MPa per 0.1% carbon increase due to greater pearlite volume and carbide formation.
• Ductility declines exponentially: low-carbon grades typically achieve 20–30% elongation; high-carbon steels may fracture at ≤5%.
• Weldability deteriorates as carbon increases, raising martensite formation risk in the heat-affected zone (HAZ)–especially above 0.25% C without preheat.
• Machinability, however, peaks in medium-carbon ranges (0.35–0.50% C), where balanced hardness and chip-breaking support efficient turning and milling.

This relationship drives application-based selection: low-carbon for welded infrastructure, medium-carbon for dynamically loaded machinery, and high-carbon for abrasion-resistant tooling.

Mechanical Properties of Carbon Steel Plate: Strength, Hardness, and Ductility

Yield and Tensile Strength in Carbon Steel Plates

Yield strength marks the onset of permanent deformation; tensile strength reflects ultimate load-bearing capacity. Both scale strongly with carbon content and microstructure:

• Low-carbon steel typically exhibits 140–350 MPa yield strength and 280–550 MPa tensile strength.
• High-carbon steel reaches 500–1000 MPa yield and 700–1500 MPa tensile strength–enabling compact, high-load designs in tooling and springs.

Balancing Ductility and Hardness for Optimal Performance

The ability of a material to stretch or deform without breaking is what we call ductility, and it's typically measured through how much it can elongate or reduce in area before giving way. When talking about hardness, most people refer to tests like Rockwell (HRC) or Vickers (HV), which basically tell us how resistant a material will be to scratches and general wear over time. Carbon content plays a big role here too. More carbon means harder but less flexible steel. Low carbon steels with around 20-30% elongation work great for things that need to be shaped extensively, like sheet metal parts for car bodies. On the flip side, high carbon steels only stretch about 2-5%, making them ideal for tools that need to hold their shape under stress, think chisels or springs. That's why many engineers go for medium carbon options such as ASTM A572 Grade 50 steel when they want something strong enough for structural applications but still capable of being formed into useful shapes during manufacturing processes.

High Strength vs. Weldability: Navigating the Trade-off

When pushing for higher material strength, we run into serious fabrication issues. Steel with too much carbon creates brittle martensite in the heat affected zone, which makes it prone to cold cracking. This happens especially when there's mechanical restraint, fast cooling rates, or even trace amounts of hydrogen present during welding. Low carbon steels like ASTM A36 work just fine with regular welding methods. But when dealing with high carbon plates, things get complicated. We need to follow strict protocols including preheating between 150 and 300 degrees Celsius, using those special low hydrogen electrodes, carefully managing temperatures between passes, and applying post weld heat treatments for anything thicker than 32 mm. The ASME Section IX code actually requires all these precautions for any weld that retains pressure. It really drives home the point that raw strength means nothing if we can't verify the joint will hold up over time.

Common Carbon Steel Plate Grades and ASTM Standards

A36, A572 Grade 50/65, and A516 Grade 70 Compared

ASTM standards codify performance expectations across chemical, mechanical, and metallurgical parameters:

• ASTM A36 (carbon ≤0.26%, yield ≤36 ksi) offers proven weldability and cost efficiency for general structural use–ideal for building frameworks and non-critical supports.
• ASTM A572 Grades 50/65 (carbon ~0.23%, yield ≤50/65 ksi) deliver higher strength-to-weight ratios with retained formability–widely adopted in bridges, cranes, and heavy equipment.
• ASTM A516 Grade 70 (carbon ~0.30%, yield ≤38 ksi, Charpy V-notch ≥27 J at −46°C) prioritizes notch toughness and low-temperature reliability–specifying material for ASME Section VIII pressure vessels and storage tanks.

ASTM and ASME Compliance for Carbon Steel Plate Selection

The ASTM specs keep things consistent when it comes to material makeup, strength characteristics, and how tests are conducted. Then there's ASME certification covering Sections II, VIII, and IX which basically means extra checks must happen for parts where failure could be dangerous. Mill Test Reports or MTRs form the basis of all this verification work. These reports actually show what's inside the steel - carbon levels, how much force it can take before breaking, and how tough it is against impacts. This kind of documentation lets engineers track materials from production right through to final installation on site. When working with super cold temperatures, A516 Grade 70 stands out because it passes those tough Charpy V-notch tests even at minus 46 degrees Celsius. Regular old A36 steel just doesn't cut it for these conditions and won't pass muster according to the ASME Boiler and Pressure Vessel Code.

Fabrication Requirements: Weldability and Service Conditions

Weldability and Fabrication Methods in Real-World Applications

The ability to weld metals really depends on their carbon equivalent (CE) value rather than just looking at carbon content alone. When working with steel plates where CE goes above 0.40 like A572 Grade 65 or normalized A516 steels, most welding codes including AWS D1.1 and ASME Section IX will call for some kind of preheating treatment. SMAW and GMAW are still the workhorses in many shops, but getting good results requires careful control of several factors during the process. Heat input needs monitoring, so does the temperature between passes, and managing hydrogen sources remains critical too. Steel containing more than 0.05% sulfur tends to crack when heated, which is why specs often specify minimum manganese levels around 0.80% to counteract this problem. The folks at ASM International report that poor thermal management causes roughly a quarter of all field weld failures, showing just how important following proper procedures can be compared to simply choosing the right material grade. For thicker sections over 32mm that see repeated loads or have built-up stresses after welding, post-weld stress relief becomes absolutely necessary to prevent future issues down the road.

Matching Carbon Steel Plate to Load and Environmental Demands

The performance specs need to match actual service conditions, not just look good on paper. Take A516 Grade 70 steel for pressure vessels - it's chosen because it holds up when temps drop below freezing, not just because it has a 38 ksi yield strength. For coastal projects where saltwater gets everywhere, we're talking about chloride levels over 500 ppm. At those concentrations, regular old corrosion protection won't cut it anymore. Need to think about cladding options like stainless overlays instead. When building bridges, engineers specify minimum Charpy V-notch values around 27 joules at operating temps. This helps prevent sudden failures from brittle fractures when heavy traffic passes over. And watch out for heat above 425 degrees Celsius. That kind of warmth really speeds up creep deformation. Which means switching from standard carbon steel to something tougher like carbon-molybdenum alloys specified in ASTM A204 becomes absolutely necessary.

Ensuring Quality and Cost-Effectiveness in Carbon Steel Plate Procurement

Mill Test Reports (MTRs) and Verifying Compliance

Mill Test Reports (MTRs) are pretty much mandatory when it comes to quality control work. These documents serve as official proof that materials meet ASTM/ASME standards, showing real numbers for carbon content, yield strength, tensile strength, and impact test outcomes. Good suppliers will generate MTRs linked directly to specific heat batches and coil numbers so engineers can check if the material works for their application before any cutting or welding happens. We've seen plenty of problems on construction sites where structural components or pressure vessels lacked proper documentation. Projects get held up, expensive rework becomes necessary, and sometimes there's even regulatory trouble down the road. Getting third party confirmation of MTR information, like having an outside lab double check the numbers, cuts down on service failures significantly. Some recent studies in metallurgy suggest this kind of verification can reduce failure risks by around 34% in practice.

Balancing Cost, Availability, and Material Quality

A good procurement strategy should consider the whole lifecycle costs instead of focusing solely on what something costs upfront. Low grade carbon steel might save around 15 to 20 percent initially, but cutting corners on specifications for load requirements, environmental factors, or how long it will last under stress can lead to early failures, expensive fixes, or even dangerous situations. Standard materials such as A36 and A572 Grade 50 tend to be better choices when markets get shaky because they're widely available. Working closely with certified steel producers and keeping specs flexible enough to accept equivalent alternatives helps maintain supply chains without sacrificing quality. At the end of the day, the truly cost effective material isn't necessarily the cheapest option but the one that keeps working properly throughout its expected lifespan, backed up by complete records showing consistent composition and proven performance characteristics.

FAQ Section

What are the different grades of carbon steel plates?

Carbon steel plates come in low, medium, and high carbon grades, each offering unique properties suitable for different applications. Low-carbon steels offer high ductility and excellent weldability, medium-carbon steels provide a balance between strength and formability, and high-carbon steels deliver maximum hardness.

How does carbon content affect the performance of steel?

Carbon content primarily influences strength, ductility, weldability, and machinability. Increased carbon raises strength and hardness but reduces ductility and weldability, making selection crucial based on application needs.

Why is weldability important for carbon steel plates?

Weldability is crucial because it affects fabrication ease and structural integrity. High-carbon content can create brittle formations during welding, necessitating specific welding techniques to ensure strong, reliable joints.

What are Mill Test Reports (MTRs) in steel procurement?

Mill Test Reports (MTRs) verify compliance with ASTM/ASME standards and confirm material properties such as carbon content and strength, ensuring the steel meets specifications required for its intended application.
